The Sennheiser XSW-D PORTABLE BASE SET is an easy entry point into the world of wireless microphone audio for vloggers, video shooters, and mobile journalists looking for a camera-mount system that's cost-effective as well as quick and simple to use. It puts world-renowned Sennheiser sound quality in a plug-and-record, 1-button digital system that anyone can operate. Plug it in, power it up, and you're immediately up and running, instantly lightening your workload so you can concentrate on creating.

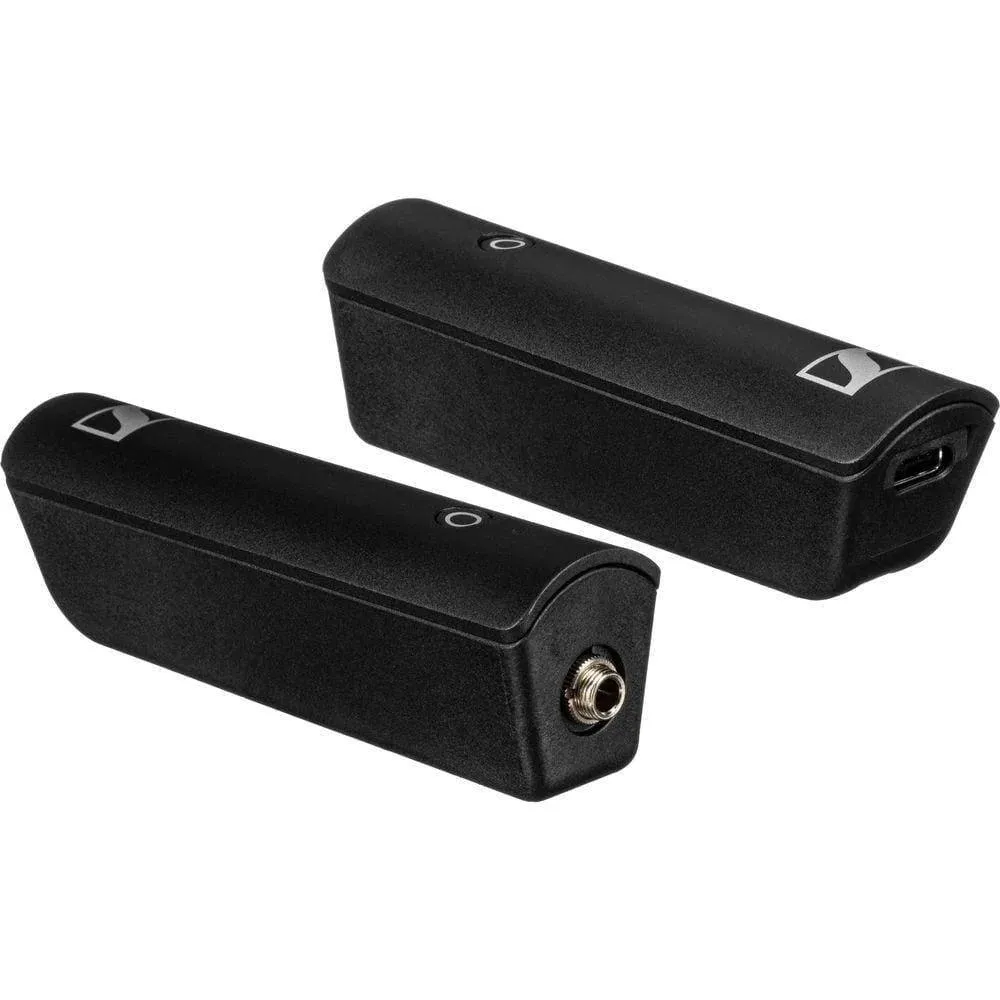

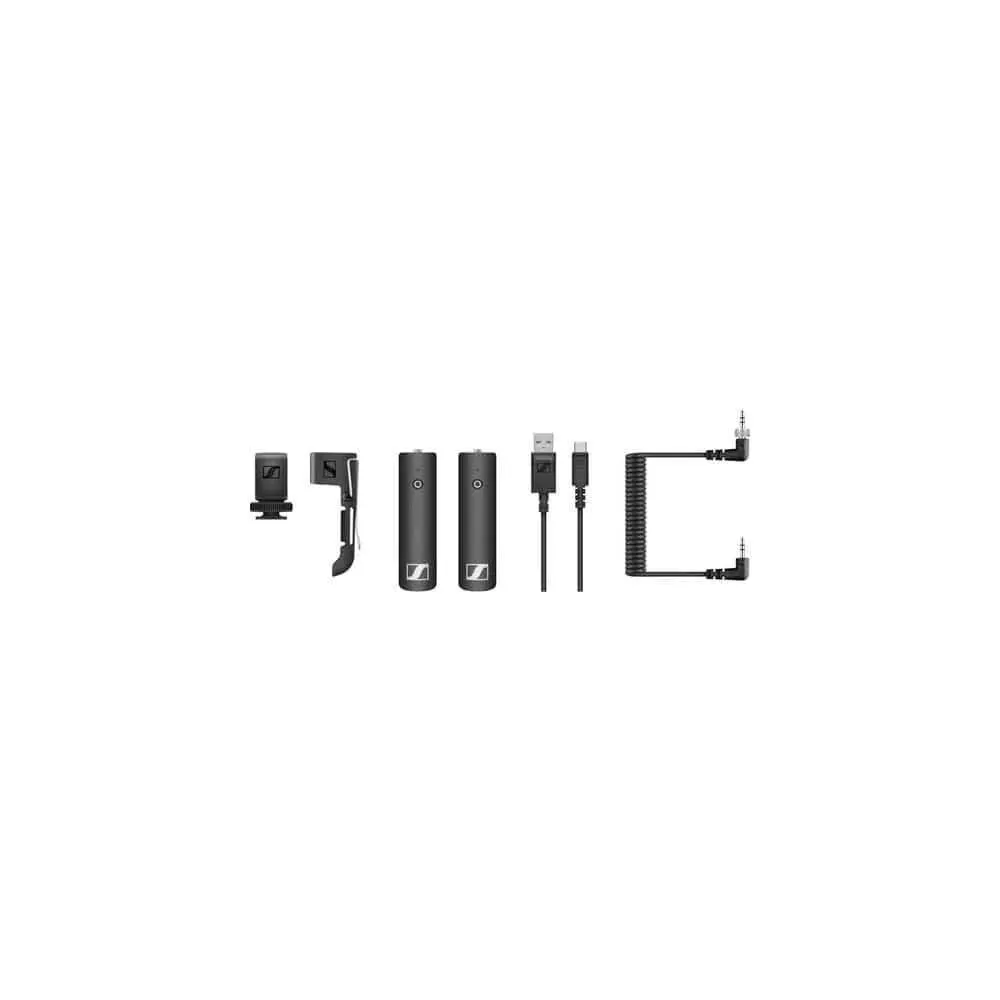

The XSW-D PORTABLE BASE SET comes with a bodypack transmitter ready to be used with either a lavalier or headset mic of your choice. The camera-mount receiver connects to a DSLR, camcorder, or a tablet/smartphone (with additional adapter) to capture crisp-sounding interviews or dialog for video shoots.
Features
- Plug & Record Set for Vlogger
- Use with Lavalier or Headset Mic

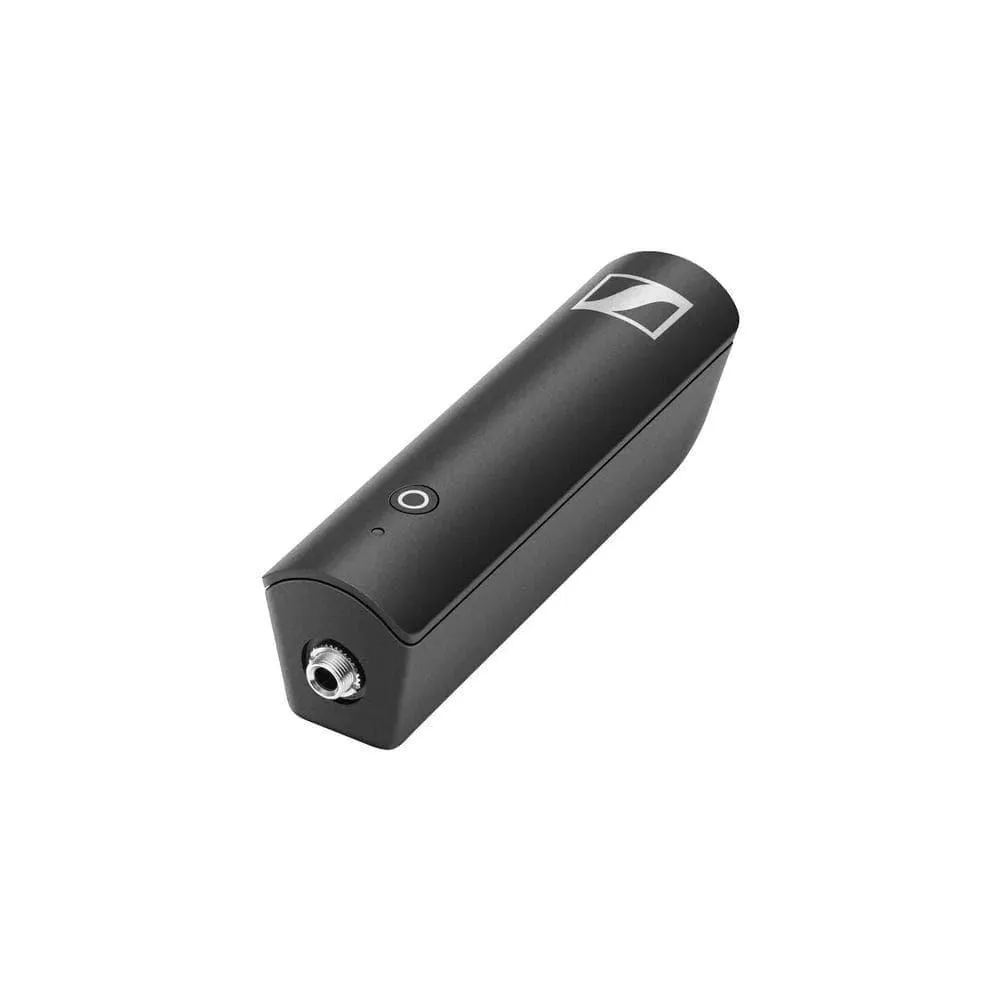

- Miniature Bodypack Transmitter

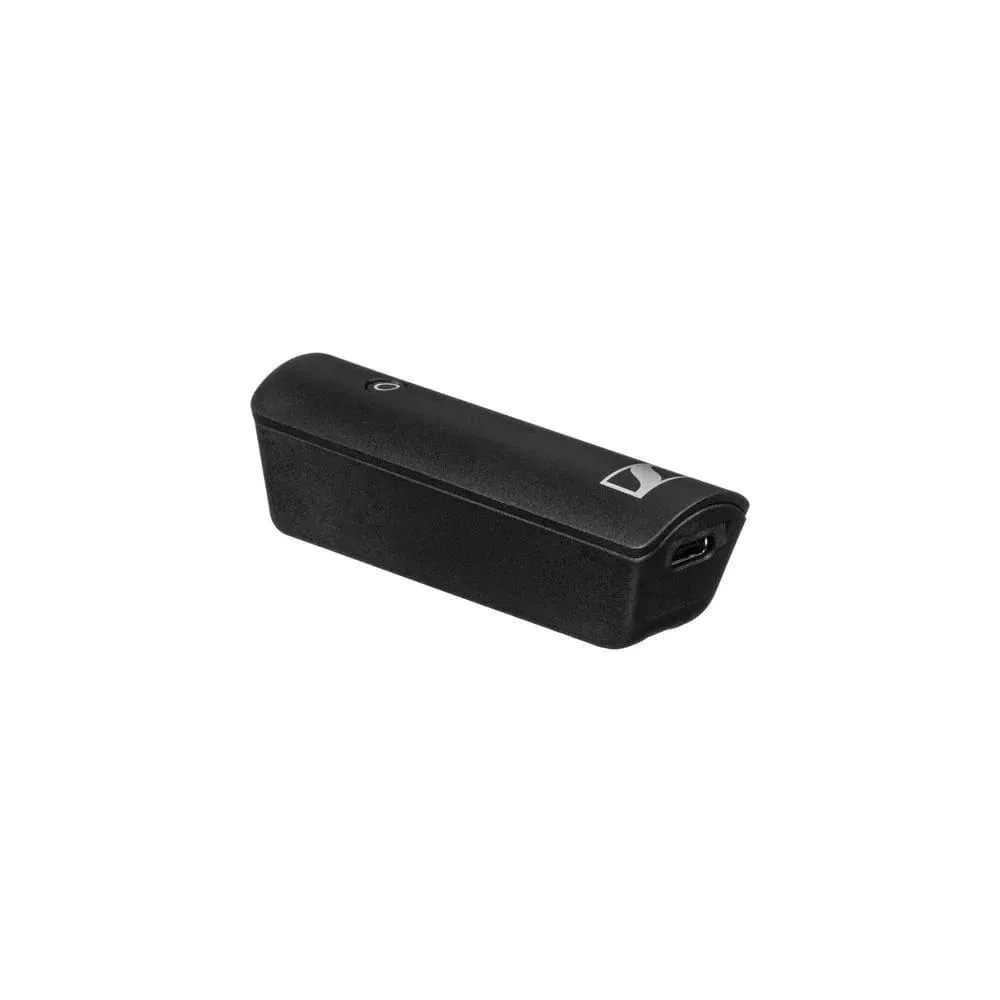

- Miniature Camera-Mount Receiver
Tech Specs
Operating Temperature 14 to 131°F / -10 to 55°C| System |
| Wireless Transmission Digital 2.4 GHz |
| Included Transmitters 1 x Bodypack |
| Diversity TDMA |
| RF Frequency Band 2400 to 2483.5 MHz |
| Max Operating Range 250' / 76.2 m (Line of Sight) |
| Max Systems per Setup 5 |
| Audio Codec APT-X Live |
| Latency |
| Encryption None |
| Modulation GFSK |
| Receiver |
| Form Factor Camera-Mount |

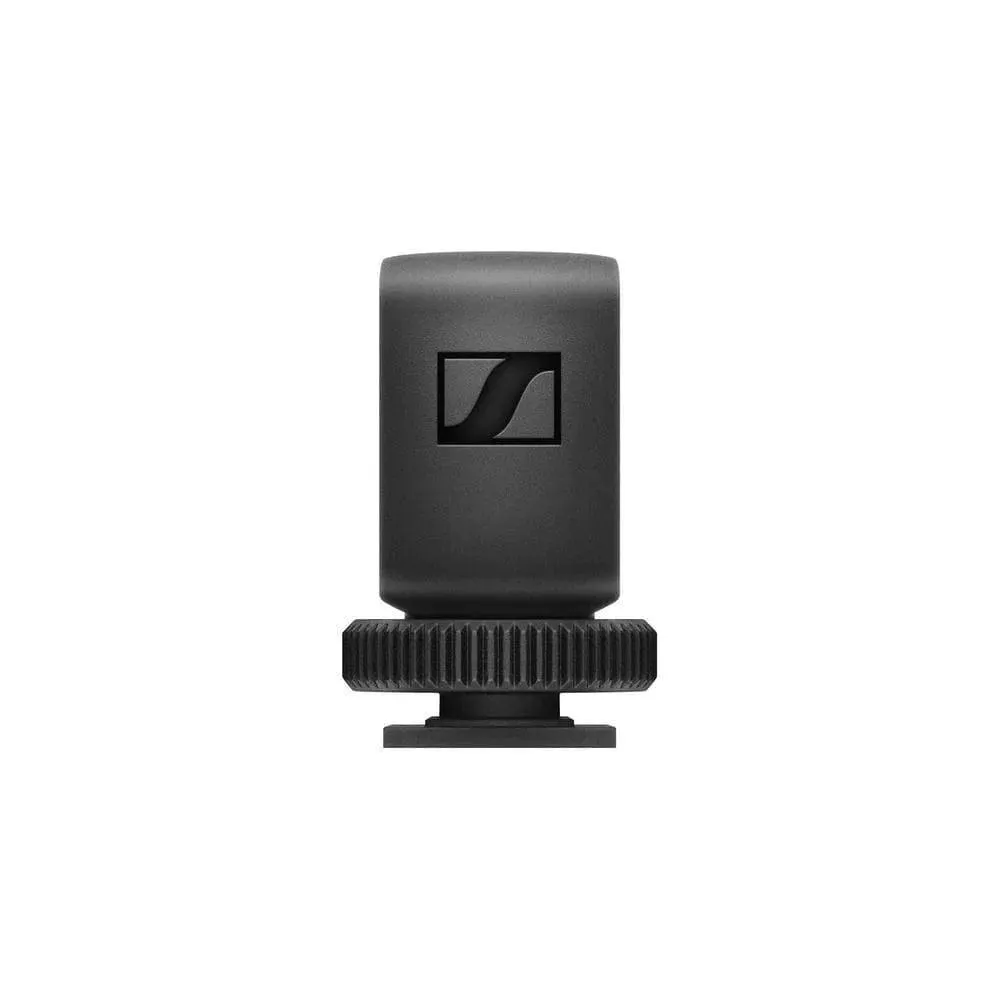

| Mounting Options Shoe-Mount (with Included Hardware) |
| Antenna Internal |
| Number of Audio Channels 1 |
| Audio I/O 1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable) |
| Audio Output Level 12 dBu (Consumer Level) |
| Frequency Response 80 Hz to 18 kHz |
| USB/Lightning Connectivity 1 x USB Type-C (Bus Power, Charging) |
| Power Requirements Battery, Bus Power (USB) |
| Battery Type 1 x Built-In Rechargeable (Included, Not Replaceable) |
| Approx. Battery Life 5 Hours (Lithium Rechargeable) |
| Battery Cycle Count Up to 1000 Cycles |
| Display & Indicators 1 x LED (Battery Status, Mute, RF Level) |
| Housing Plastic |
| Operating Temperature 14 to 131°F / -10 to 55°C |
| Operating Humidity 95% |
| Dimensions 1.1 x 3.4 x 0.9" / 28 x 86 x 24 mm |
| Transmitter |
| Form Factor Bodypack |
| RF Output Power 10 mW |
| Audio I/O 1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable) |
| Muting Off/On Switch |
| Audio Input Level (Mic Level) |
| Frequency Response 80 Hz to 18 kHz |
| Antenna 1 x Internal |
| Power Requirements Battery, Bus Power (USB) |
| Battery Type 1 x Built-In Rechargeable (Included, Not Replaceable) |
| Approx. Battery Life 5 Hours (Lithium Rechargeable) |
| Battery Cycle Count Up to 1000 Cycles |
| USB/Lightning Connectivity 1 x USB Type-C (Bus Power, Charging) |
| Display & Indicators 1 x LED (Battery Status, Mute, Signal Strength) |
| Housing Plastic |
| Operating Humidity 95% |
| Dimensions 1.1 x 3.4 x 0.9" / 28 x 86 x 24 mm |
| Packaging Info |
| Package Weight 0.75 lb |
| Box Dimensions (LxWxH) 12.3 x 10.9 x 9.7" |
